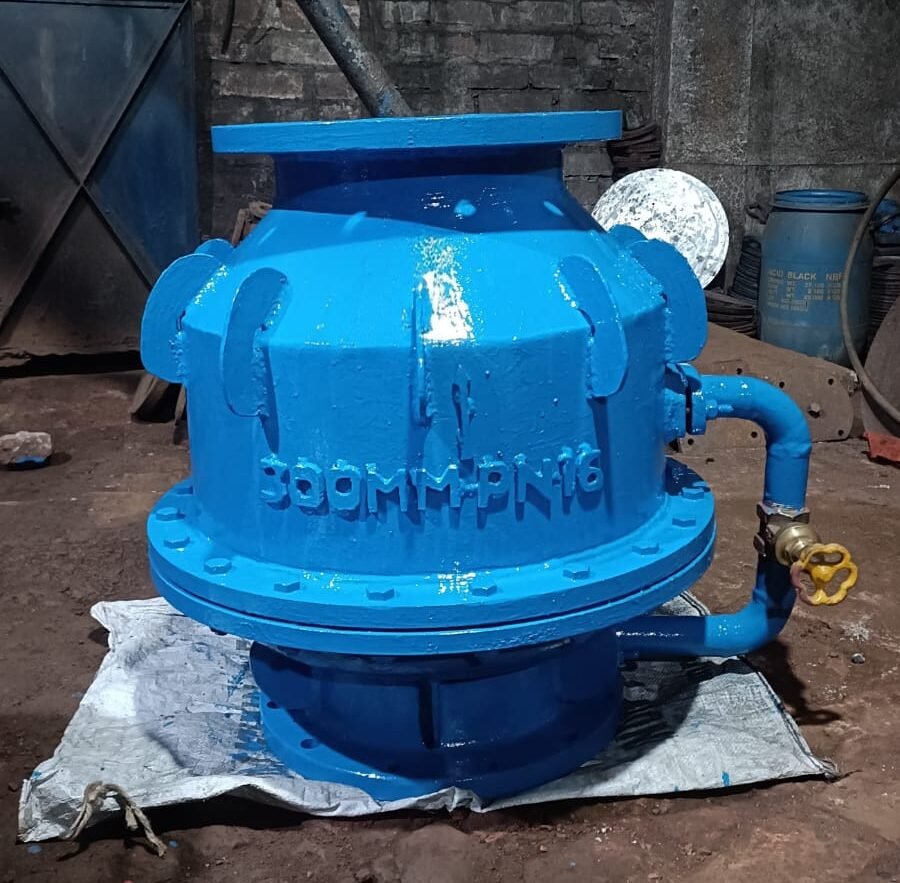

Zero Velocity Valve consists of a spring loaded closing disc for stopping reverse flow in case of failure of pumps, enclosed in an outer shell. A well designed dome is located in back of disc to stream line the flow in routine operation. Disc is mounted on a central shaft and is further supported by guide rods. Valve is provided with a bye pass arrangement
Valves are generally supplied with barrel ends but can also be flanged, if so desired. The springs are designed in such a manner that the valve remains full open when 25% of designed velocity is achieved. In case of closure of pump, disc starts closing in relation to decrease of velocity and fully closes when velocity drops near to zero. Thus upstream water column is prevented from creating water hammer wave.
Bye pass arrangement keeps pressure balance on both sides of disc. It also prevents
creation of vacuum in downstream side.

Size: 100mm to 2000mm
Materials: Cast Iron / M.S. IS 2062
Availability : Barrel End
Flanged End
Extended Barrel End
